SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer

SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer

pharmaceutical equipment

pharma machinery

Place of Origin:

China

Brand Name:

LTPM China

Certification:

CE, GMP

Model Number:

SYH

Contact Us

Request A Quote
Product Details
Model Number::
SYH Series
Name::
3D Lab Dry Powder Mixer
Type::
Mixing Machine
Capacity:
0.8-800L
Total Weight:
50-2500 Kg
Certificate:
CE Certificate
Product Description

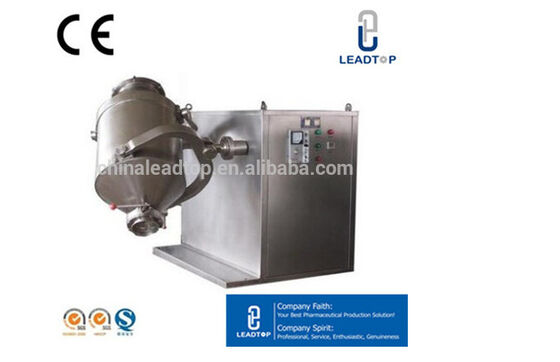

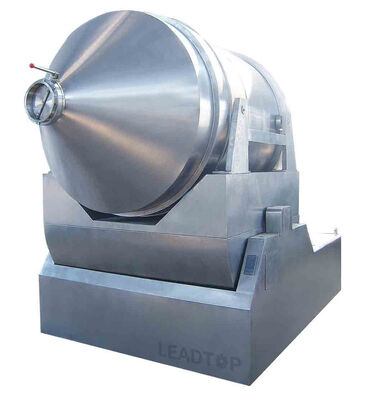

SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer


Quick Detail:

Quick Detail:
Model No.: SYH
Capacity: 0.8-800L
Material: Stainless steel 304
Total Weight: 50-2500 kg
Power Supply: 380V 50HZ Three Phase
Certificate: CE Certificate


Description:
The mixing barrel of the machine moves in multi-direction. For the materials, there is no centrifugal function, without the specific gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is up to 100%. The machine is the desired product in various mixers at present.
The barrel material charge rate is big. The Maximum rate can be up to 90%(the common mixer has only 40% charge rate). It is high in efficiency and short in the mixing time.
The barrel uses the curve connection. The barrel has passed the fine polish treatment.


Applications:

The machine is used for mixing the powder state and grain state material with the high uniformity in the pharmacy, chemical, food, light-industry, electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.


Specifications:

Model SYH1 SYH5 SYH15 SYH50 SHY100 SYH200 SYH400 SYH600 SYH800 SYH1000
Barrel capacity(L) 1 5 15 50 100 200 400 600 800 1000

Max loading
capacity(L)

0.8 4 12 40 80 160 320 480 640 800

Max loading
capacity(kg)

0.5 2.4 7.5 25 50 100 200 300 400 600
Speed of driving shaft(r/min) 30-15 30-15 0-8 0-8 0-8 0-8 0-8 0-8 0-8 0-8
Motor power(kw) 0.12 0.25 0.37 1.1 1.5 2.2 4 5.5 7.5 7.5

Overall
dimension(mm)

500*600
*600

600*1000
*1000

700*1000
*700

500*600
*800

1000*1400
*1200

1200*1700
*1500

1400*1800
*1600

1900*2100
*2250

2200*2400
*2300

2250*2600
*2600

Total weight(kg) 50 150 200 300 500 800 1200 1500 2000 2500



Competitive Advantage:

1. we have seven technicians who gets passport ready to travel all over world to offer service to you.
2. We have 24hours hot line for Technical Support.
3. We get 18hours internet line for technical support.
4. Video camera in workshop to help you adjust and solve machine problem in working situation.
5. We have Technical Support in below Foreign Cities:
California (commission worker), Manila and Davao (Distributor), Lima (Agent), Ho Chi Ming and Hanoi (Agent), Dhaka (Agent), Lahor


Our Product:

SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer 0
SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer 1
PACKING SHIPMENT :
SYH Series Pharmaceutical Processing Machines , Stainless Steel Motion Powder Mixer 2
