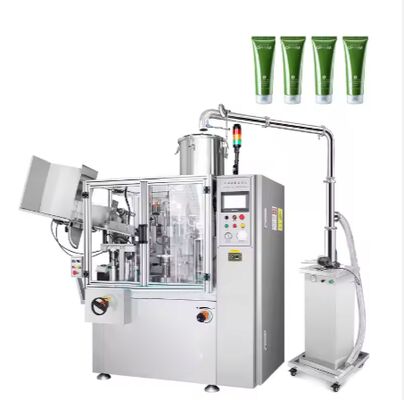

Automatic tube filling and sealing machine is suitable for aluminum and plastic tube filling and sealing.
1. Cosmetic products:Face cream, body cream, washing cream, hand cream etc
2. Food products: Condensed milk, chocolate,mustard,sauce ,ketchup,tomato,paste,mayonnaise etc
3. Chemical products: Hair color cream, welding paste,ink, paint ,pigment etc
4. Adhesive products: Instant glue, AB glue,silica gel,anaerobic adhesive, silicon

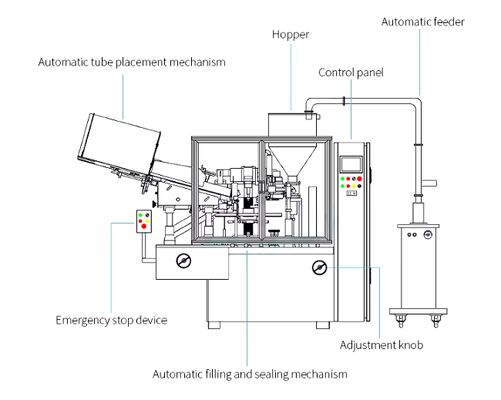

Main parts
Tube Loader, tube counting, eye mark,tube filling,heat sealing, tube folding, emboss batch no ,EXP date,plastic tube Cutting,
aluminum folding optional water chiller, heating machine, pump,laser printer etc.
① Automatic tube loading mechanism:
Put the tubes into the slot and they will be automatically transported to the work tray by the tunnel.
②Work tray:
The mold used to place the pipe, the diameter can be customized 13.5-60mm, one machine can customize multiple sets of molds for more pipes of different diameters
③Automatic photoelectric identification and benchmarking:
This sensor is for automatic orienting the tube according to the color mark on tube Tail
④Precision filling:
Filling nozzles will be customized according to different pipe diameters to ensure filling without splash/overflow
①Tube end folding device:
Combining several processes of bending, clamping and folding, it is used to seal the end of the tube. The date can be printed to the tail while it is sealed
②Automatic unloading:
The finished tube will be automatically unloaded from here
Supplier highlights
This merchant is both a manufacturer and trader, with quality control capabilities and full customization, design customization, sample customization services, holds product certifications, and has a customer satisfaction rate of 99.9%.
|
Production speed
|
30-80 pieces/min
|
|
Filling volume
|
5-300ml/piece
|
|
Filling accuracy
|
≤±0.5%
|
|
Applicable pipe diameter
|
13.5-60mm
|
|
Applicable tube length
|
up to 230mm
|
|
Voltage
|
380V
|
|
Working pressure
|
0.6Mpa
|
|
Size
|
2.38×1.2×2.3(m)
|
|
Net weight
|
1500kg
|
|
Optional
|
hose/aluminum tube/metal tube
|
