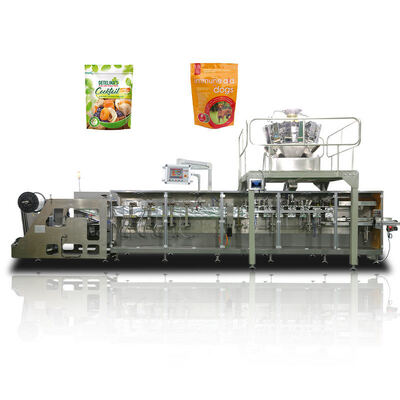

Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine

Nom De Marque:	LTPM CHINA
Numéro De Modèle:	HorizonTop--Série
MOQ:	1 ensemble
Prix:	Consultation and detailed discussion
Conditions De Paiement:	LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacité à Fournir:	25sets/mois

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine:

Zhejiang ， Chine

Certification:

CE,ISO

Type d'emballage:

Pochette stand-up, Sacs, Film, Pochette, Scellage

Niveau automatique:

Automatique

Tension:

380 V/220V

Matériau de remplissage:

Poudre, pâte, granule, liquide, solide

Application:

Alimentation, boissons, produits chimiques, machines et matériel, vêtements, textiles, cigarettes, p

Garantie:

5 ans

Détails d'emballage:

Caisse en bois standard d'exportation

Capacité d'approvisionnement:

25sets/mois

Mettre en évidence:

fully automatic sachet packaging machine

double sachet form fill seal machine

high speed horizontal packaging machine

Description du produit

Products Description

This series of horizontal premade bag packaging machinesis a fully automatic premade bag packaging machine.

which is suitable for users with many bag types, large packaging capacity,and small batches of products.

lt can meet the commonly used three-side sealing and four-side sealing and can realize the packaging of special bag types

such as hanging hole bags, stand-up bags, special-shaped bags, etc. lt is suitable for the packaging needs of various

materials such as powder, granule, liquid, paste, and solid.Switching bag types is simple and fast; changing different metering

devices can meet the packaging of differen tproducts.

Equipped with stable filler, Boevan granule packaging machines could realize high filling accuracy, fast packing speed, easy to
operate and adjust. It is widely applied in Pharmaceutical, food, Daily chemical etc. industries all over the world like United
State, Europe, Southeast Asia, South Africa etc.with CE certification and tech. Patents.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

Fully Automatic Double Sachet Form Fill Seal Washing Powder Chemical High Speed Horizontal multifunctional packaging machine 1

Process chart and Pouch example:

1.Zipper Release 2.Film Unwind 3.Bottom Holes Punching 4.Bag Forming 5.Film Guide 6.Horizontal Zipper Seal 7.Bottom Seal 8.Vertical Zipper Seal 9.Vertical Seal I 10.Vertical Seal II 11.Tear Notch 12.Photocell 13.Servo Advance 14.Cutting 15.PouchCatching 16.Pouch Opening 17.Air Flushing 18.Filling I 19.Filling II 20.Pouch Stretching 21.Top Seal I 22.Top Seal II 23.Finished Product 24.Outlet

Machine Features

1.High precision structure for simple and easy operation and repair.
2.The machine completes the whole procedure of filling,pouching,date printing automatically.
3.Selecte device: zipper bags device ,round pouch hole,pouching device.
4.All the works of bag-forming,weighing, filling, sealing and cutting can be done automatically by this machine.
5.Package material: PE/AL/PET; PE/NY/AL/PET; CPP/NY/AL/PET.

Servo Advance System

1.Easy computerized specification change2.Stable pouch advance with less deviation
3.Big torquemoment of pouch advance, suitable for big volume

Zipper Function

1.Independent zipper unwind device

2.Stable zipper tensile force control
3.Even zipper seal

Pouch Sample:
