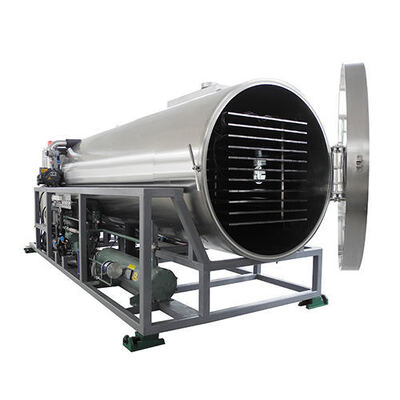

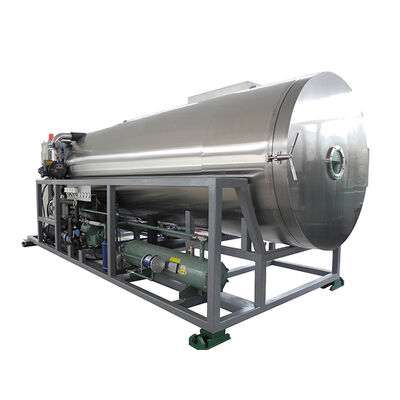

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

China Factory Industrial Vacuum Lyophilizer for Health Food and Pet Food Freeze Dry Machine

Nom De Marque:	LTPM China
Numéro De Modèle:	LTDG-séries
MOQ:	1 ensemble
Prix:	Négociable
Conditions De Paiement:	LC, T/T
Capacité à Fournir:	15 sets/mois

Les informations détaillées

Description du produit

Les informations détaillées

Lieu d'origine:

Chine

Certification:

Poids:

1200 kg

Nom de l'article:

Lyophilisateur

Secteur sec:

1,08 mètres carrés

Tray Area:

1,02 mètres carrés

Tout le volume de déshydratation:

15 kg/batch

espacement d'étagère:

70 millimètres

Mode de chauffage:

Mode de conduction

Système d'exploitation:

Écran tactile

Détails d'emballage:

Caisse en bois standard d'exportation

Capacité d'approvisionnement:

15 sets/mois

Mettre en évidence:

15 kg/batch Capacity Freeze Dryer

Touch Screen Control Lyophilizer

Steam Heating System Vacuum Freeze Drying Equipment

Description du produit

Industrial Freeze Dryer with 15 kg/batch Capacity

This industrial freeze dryer features touch screen control and steam heating system, designed for efficient large-scale freeze drying operations with a capacity of 15 kg per batch.

Freeze Drying Technology Overview

Freeze drying operates on the principle of water's three states (solid, liquid, gas) and their interconversion. Under high vacuum conditions, sublimation occurs where frozen water transitions directly from ice to vapor without melting, effectively removing moisture from pre-frozen materials.

Product Advantages

Freeze-dried products maintain spongy texture with minimal shrinkage, excellent rehydration properties, and very low moisture content. Properly packaged, they can be stored and transported at room temperature for extended periods.

Key Features

Economical design with high energy efficiency
Multiple heat source options: steam and electrical
Modular design for fast installation and short production cycles
Highly integrated components with compact footprint
Continuous automatic vacuum de-icing system with minimal temperature loss
Real-time precise temperature control for consistent product quality
Energy efficient operation with large freeze drying capacity
Rapid vacuum extraction reaching process requirements within 12 minutes
PLC automatic control system for optimal working conditions
Simple operation, easy maintenance, and reliable performance

Technical Specifications

Power	167Kw, 380V±10%, 50HZ, 3 Phase, 5 Wire
Vacuum Function	19.8kw
Refrigeration Function	92kw
Heating Function	55.5kw
Compressed Air	≥40L/min (P=0.5~0.8Mpa)
Cooling Water Quantity	≥50m³/h (T≤30℃, P=0.2-0.3Mpa)
Defrost Water Quantity	≥4000kg (T≥30℃, P=0.1-0.2Mpa)
Whole Volume	Dry chamber and Condenser: D=φ2100mm L=6650mm Freeze system vacuum system control system: L=2600mm W=2200mm H=2000mm Final dimension based on design
Structure	Split
Total Weight	15T (Approx.)

Equipment Components

Main Equipment Overview

Shelves

Shelves undergo dedicated machining to guarantee high-demand flatness requirements, ensuring uniform product drying.

Vacuum System

Specifically designed for freeze-dried fruit characteristics, utilizing rotary vane vacuum pump plus roots pump unit for larger pumping speed and higher efficiency.

Condense Pipes

Constructed with argon welding to form internal and external seals, ensuring clean pipes and leak-free operation.

Chamber

Cabinet, board level, and hose components undergo multiple testing procedures to ensure complete leakage prevention and reliable performance.

Working Principle

Applications
